1-1586586-2

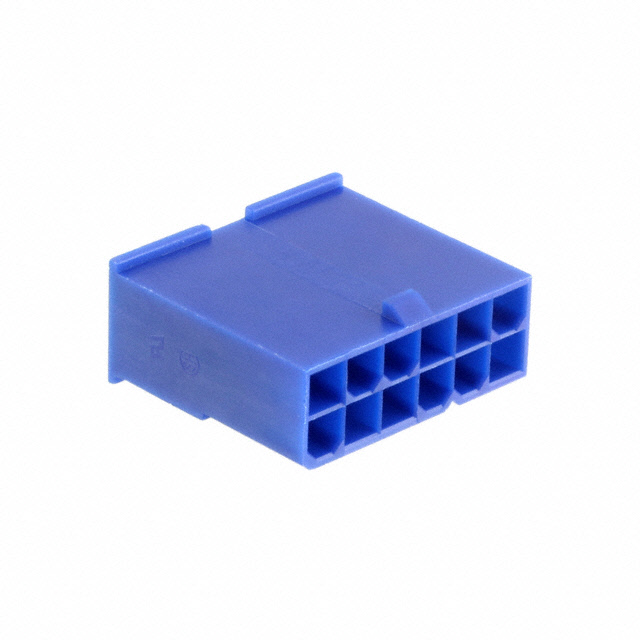

CONN HEADER VERT 12POS 4.2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors VAL-U-LOK series male header, part number 1-1586586-2, provides a 12-position, 2-row configuration with a 4.20mm pitch. This shrouded header features through-hole mounting and a board lock for secure installation. The brass alloy male pins are tin-plated with a 1.00µm thickness for mating and a 3.50mm post length. Designed for 9A current and 600VAC voltage ratings, it utilizes polyamide insulation with a UL94 V-2 flammability rating and a 14.10mm insulation height. Operating across a -40°C to 105°C temperature range, this connector is suitable for applications in industrial automation, power supplies, and appliance manufacturing.
Additional Information
Series: VAL-U-LOKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | 9A |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Contact Material | Brass Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.555"" (14.10mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.165"" (4.20mm) |
| Contact Length - Mating | - |
