1-104350-7

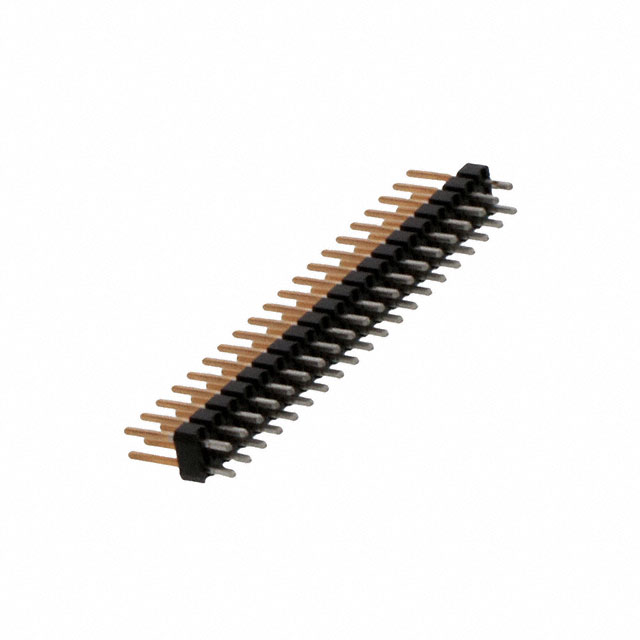

CONN HEADER VERT 40POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II series 1-104350-7 is a 40-position, 2-row unshrouded header with a 2.54mm pitch. This through-hole mounted connector features male pin contacts made from copper alloy with a square shape. The mating contacts are finished with 30.0µin of gold for enhanced conductivity, while the post contacts utilize a tin-lead finish. With a current rating of 3A and a voltage rating of 30VAC, this header is suitable for board-to-board or cable applications. The black thermoplastic insulation meets UL94 V-0 flammability standards and operates within a temperature range of -65°C to 105°C. Applications span automotive, industrial automation, and consumer electronics sectors.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | 30VAC |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.120"" (3.05mm) |
| Insulation Height | 0.090"" (2.29mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.440"" (11.18mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.230"" (5.84mm) |
