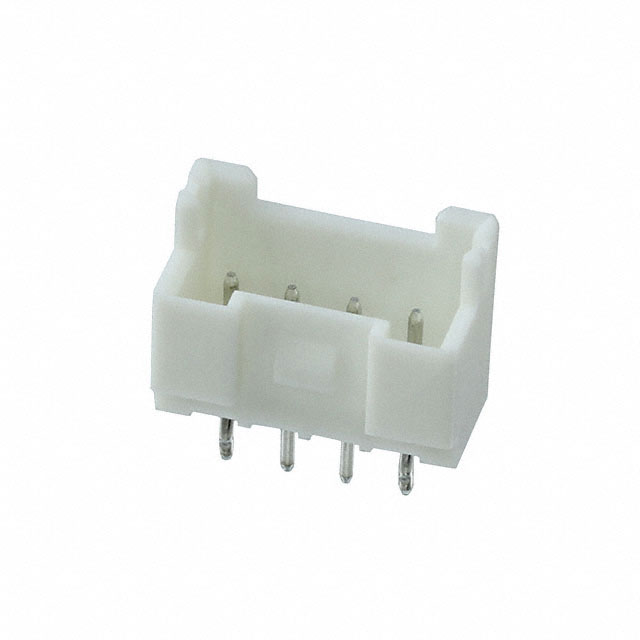

1969730-4
CONN HEADER VERT 4POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 4 position 0.098"" (2.50mm)
Additional Information
Series: Economy Power 2.5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16Product Status: Last Time BuyPackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 4.2A |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.134"" (3.40mm) |
| Insulation Height | 0.346"" (8.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.141"" (3.60mm) |
