646445-1
CONN RECEPT 200POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

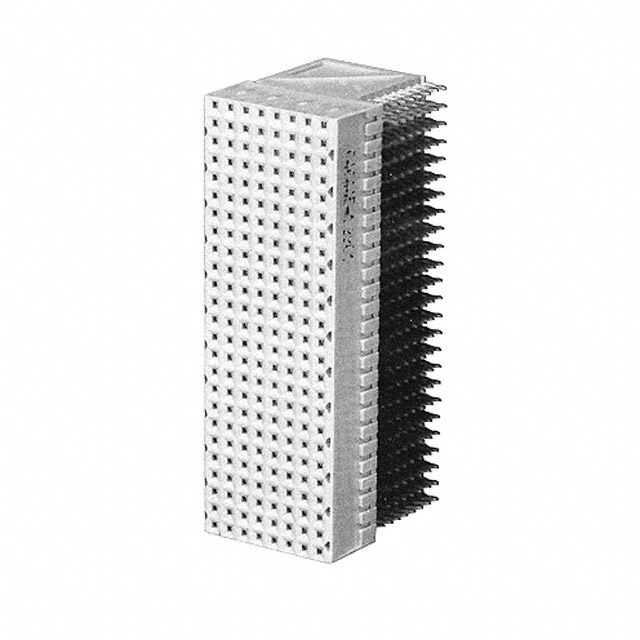

TE Connectivity AMP Connectors Z-PACK Series Receptacle, Female Sockets connector, part number 646445-1. This 200-position connector features a 2.00mm pitch and a right-angle, board edge, through-hole mounting type. The contact finish is gold with a thickness of 30.0µin (0.76µm). Designed for press-fit termination, this receptacle is suitable for demanding backplane applications, commonly found in telecommunications, data processing, and industrial automation systems. The Z-PACK connector system offers high density and robust performance for complex board-to-board interconnects. This component is supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 200 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | E 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
