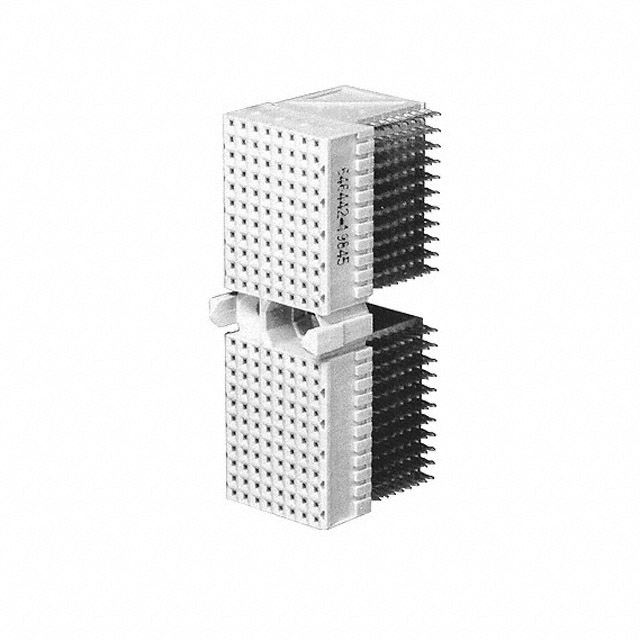

646442-1
CONN RECEPT 176POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More
TE Connectivity AMP Connectors Z-PACK series receptacle, part number 646442-1, offers a 176-position, 8-row configuration with a 2.00mm pitch. This female socket connector features a board edge, through-hole, right-angle mounting style and utilizes a press-fit termination method. The contact finish is gold with a thickness of 30.0µin (0.76µm). This connector is commonly employed in telecommunications, data networking, and high-speed computing applications where robust and reliable interconnectivity is paramount. The Z-PACK connector system is known for its high density and performance characteristics suitable for demanding electronic systems.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 176 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | D 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
