646372-1
CONN HEADER 176POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

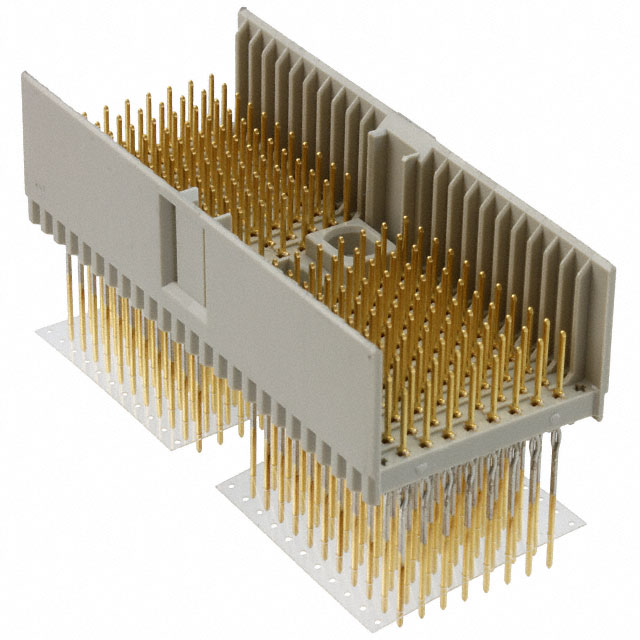

TE Connectivity AMP Connectors Z-PACK series 176-position male pin header. This through-hole connector features a 2.00mm pitch and utilizes a press-fit termination method. The connector style is D 22 with 8 rows and gold contact finish with a thickness of 30.0µin. This component is integral to high-density backplane interconnect solutions across telecommunications, data networking, and industrial automation sectors.
Additional Information
Series: Z-PACKRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 176 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | D 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
Request a Quote
