5352457-9
CONN RECEPT 110POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

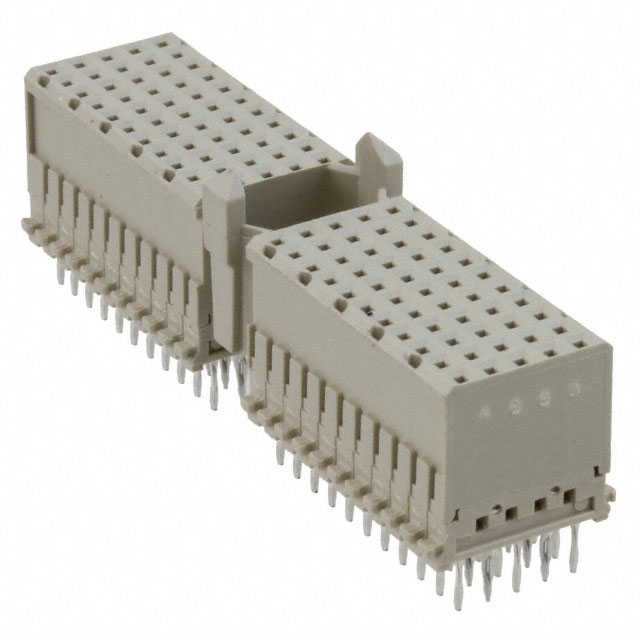

TE Connectivity AMP Connectors Z-PACK Series 5352457-9 is a 110-position receptacle connector featuring female sockets and a 2.00mm pitch. This A 22 style connector is designed for backplane applications and utilizes a press-fit termination method for robust mounting. It offers a gold contact finish with a thickness of 30.0µin (0.76µm) for enhanced conductivity and durability. The receptacle is a through-hole component, with all 110 positions loaded across five rows. This electronic component is suitable for use in telecommunications and computing infrastructure.
Additional Information
Series: Z-PACKRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | A 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
