352359-1
CONN RECEPT 110POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

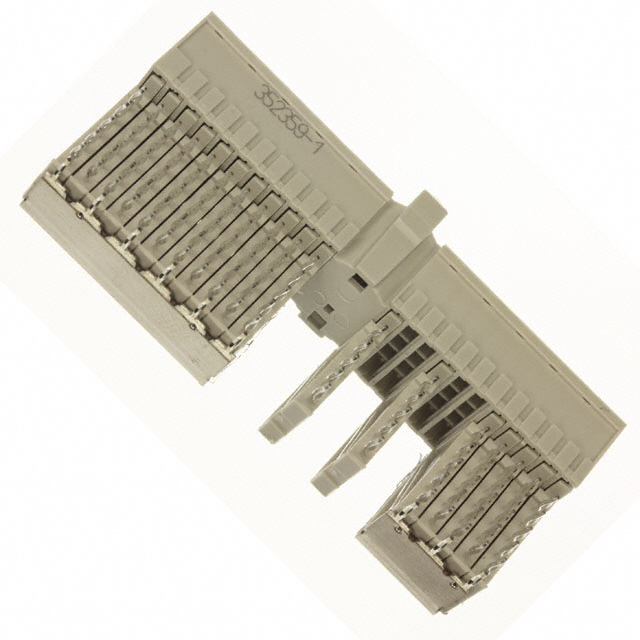

TE Connectivity AMP Connectors Z-PACK Series receptacle, part number 352359-1, offers a 110-position, 5-row configuration with a 2.00mm pitch. This female socket connector, designed for press-fit termination, features a right-angle, through-hole mounting style. It is specified for CompactPCI J4 applications and utilizes gold plating with a 30µin thickness for enhanced contact reliability. This component is suitable for demanding applications in telecommunications and industrial automation. The receptacle is supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | 90 |
| Termination | Press-Fit |
| Connector Usage | CompactPCI J4 |
| Connector Style | A 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
