106775-1
CONN RECEPT 55POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

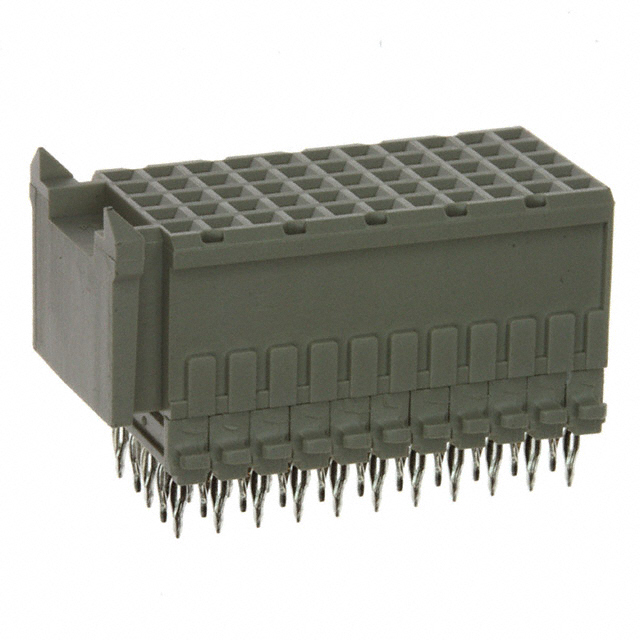

TE Connectivity AMP Connectors Z-PACK Series 106775-1 is a 55-position receptacle featuring female sockets with a 2.00mm pitch. This hard metric connector, designed for backplane applications, utilizes a press-fit termination method for robust mounting. The contacts are finished with 30.0µin of gold plating, ensuring reliable conductivity and durability. With 5 rows and all 55 positions loaded, this connector is suitable for high-density interconnects within telecommunications, computing, and data networking equipment. The component is supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 55 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | C 11 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
