106774-1
CONN RECEPT 125POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

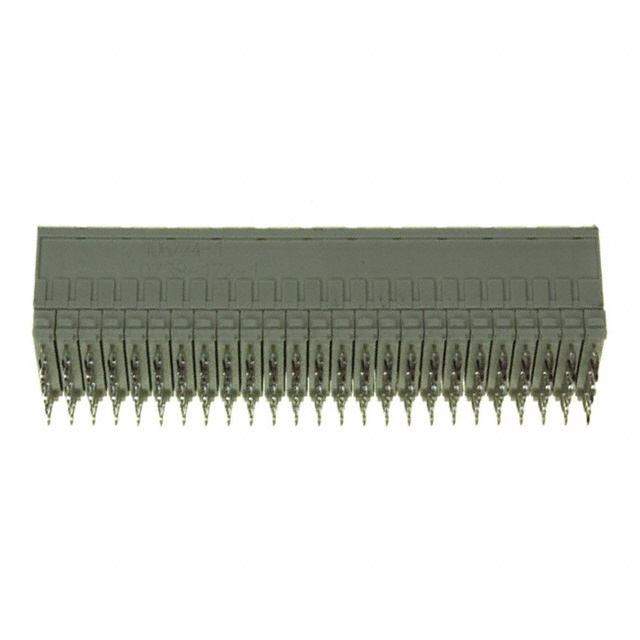

TE Connectivity AMP Connectors Z-PACK series receptacle, part number 106774-1, offers a 125-position, 5-row configuration with a 2.00mm pitch. This female socket connector is designed for backplane applications utilizing a press-fit termination method for reliable, solderless assembly. Featuring a gold contact finish with 30.0µin thickness, it ensures excellent conductivity and durability. The connector's through-hole mounting provides robust mechanical stability. This component is integral to high-density interconnect solutions commonly found in telecommunications, data networking, and industrial control systems.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 125 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
