106773-1
CONN RECEPT 110POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

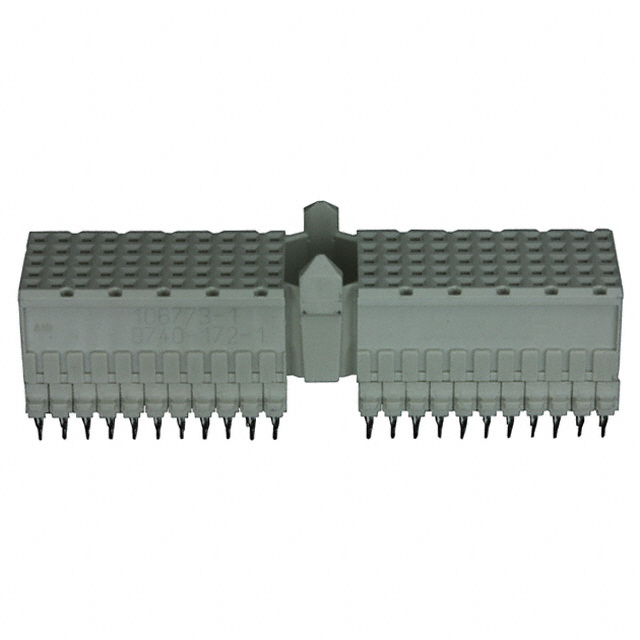

TE Connectivity AMP Connectors Z-PACK series receptacle, part number 106773-1, features a 110-position configuration with female sockets. This hard metric connector utilizes a 2.00mm pitch and a press-fit termination for robust mounting within printed circuit boards. Designed for backplane applications, the connector offers 5 rows and a through-hole mounting style. The contact finish is gold with a thickness of 30.0µin (0.76µm) to ensure reliable electrical performance. This component is commonly employed in telecommunications, data networking, and high-performance computing systems. It is supplied in tray packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | A 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
