106015-1
CONN HEADER 110POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More

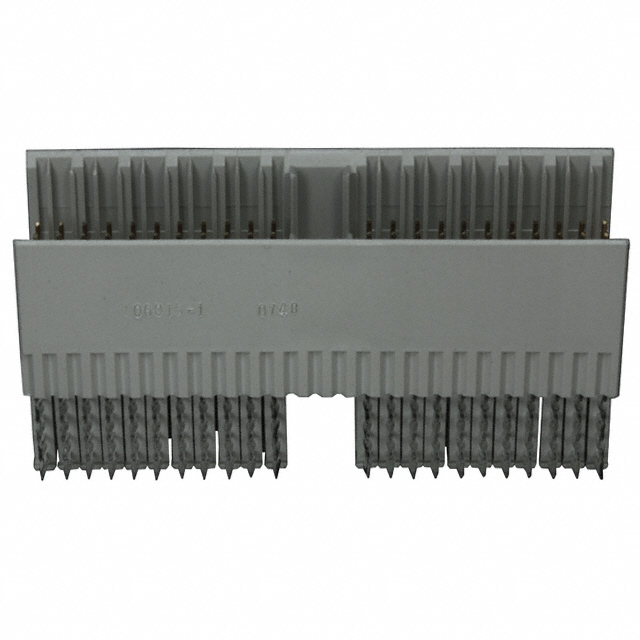

TE Connectivity AMP Connectors Z-PACK Series 110-position male pin header, part number 106015-1. This connector features a 2.00mm pitch and is designed for press-fit termination. It offers a board edge, through-hole, right-angle mounting style and a 5-row configuration. The contact finish is gold with a thickness of 30.0µin (0.76µm). This component is utilized in backplane applications across various industries, including telecommunications, data processing, and industrial automation. Supplied in tube packaging.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | A 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
