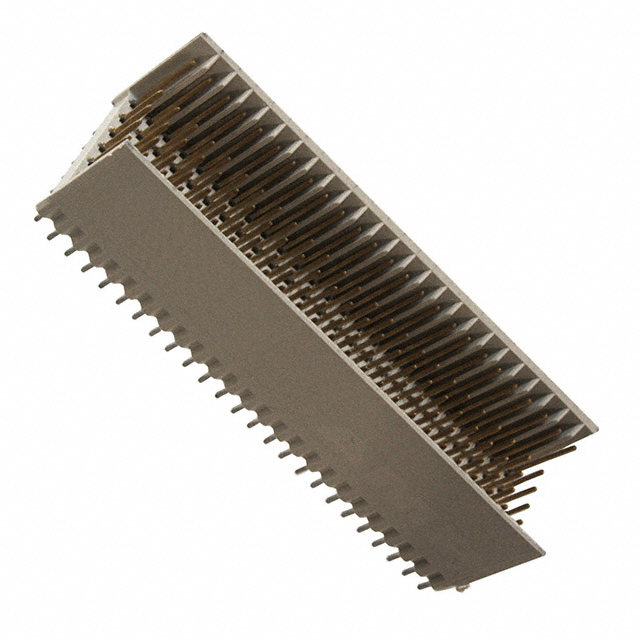

100669-1
CONN HEADER 175POS 2MM PRESS-FITManufacturer: TE Connectivity AMP Connectors
Categories: Hard Metric, Standard
Quality Control: Learn More
TE Connectivity AMP Connectors Z-PACK series connector, part number 100669-1, is a 175-position male pin header designed for press-fit termination. This hard metric, standard connector features a 2.00mm pitch and a 5 + 2 row configuration, with all 175 positions loaded. The connector's gold plating offers a contact finish thickness of 30.0µin (0.76µm). Its through-hole mounting type and press-fit termination are suitable for demanding backplane applications. This component is widely utilized in telecommunications, data networking, and high-performance computing systems.
Additional Information
Series: Z-PACKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 175 (125 + 50 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
