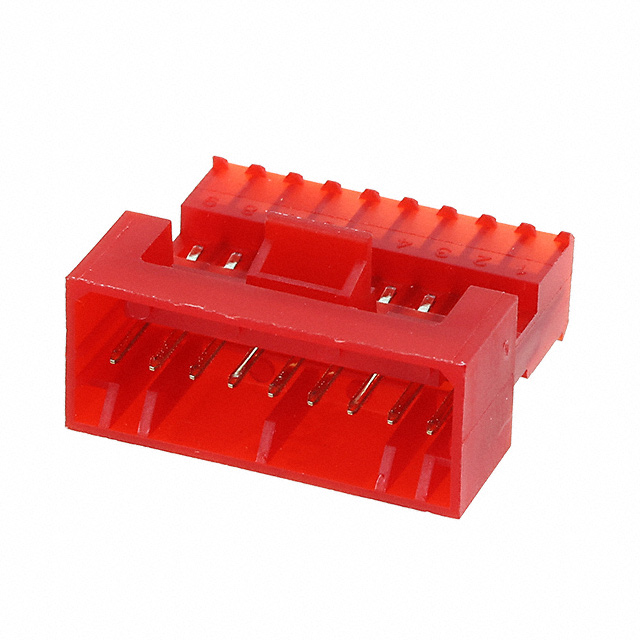

647000-9
CONN PLUG 9P IDC 22AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More
TE Connectivity AMP Connectors MTA-100 Series 647000-9 is a 9-position, 1-row, rectangular plug connector designed for discrete or ribbon cable applications. This IDC (Insulation Displacement Connector) features a tin-lead contact finish with a thickness of 80.0µin (2.03µm) and male pin contact type. The connector utilizes a 0.100" (2.54mm) pitch and is suitable for 22 AWG wire. It offers a latch holder fastening type and a closed-end design. Mounting options include free hanging (in-line) and right-angle configurations. This component is commonly utilized in automotive, industrial automation, and consumer electronics sectors. The product is supplied in bulk packaging.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Plug |
| Contact Finish | Tin-Lead |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 22 AWG |
| Number of Positions | 9 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
