644563-4
CONN RCPT 4P IDC 24AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

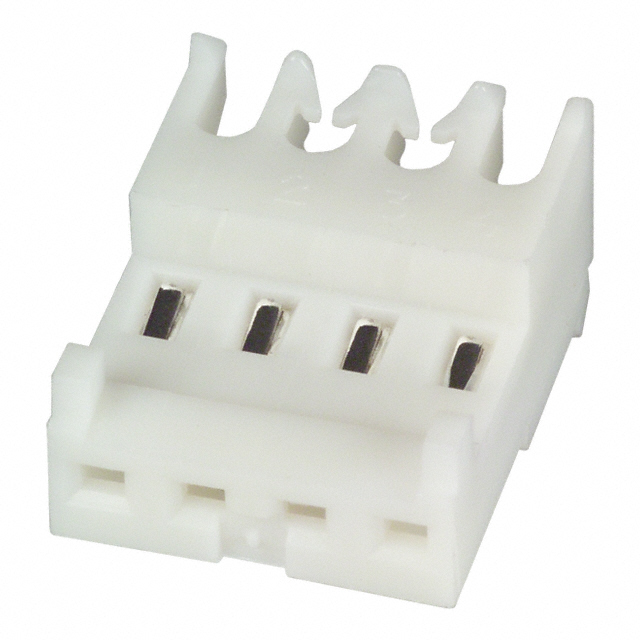

TE Connectivity AMP Connectors MTA-100 series receptacle connector, part number 644563-4. This 4-position, single-row connector features Insulation Displacement Connection (IDC) termination for 24 AWG discrete or ribbon cable. The receptacle utilizes female socket contacts with a tin-lead finish, offering 80.0µin (2.03µm) thickness. Designed for free hanging (in-line) and right-angle mounting, this connector incorporates a locking ramp for secure mating and feed-through capabilities. The 0.100" (2.54mm) pitch facilitates compact board layouts. Commonly employed in industrial automation, automotive, and consumer electronics applications. Packaged in bulk.
Additional Information
Series: MTA-100RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin-Lead |
| Color | White |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 24 AWG |
| Number of Positions | 4 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
Request a Quote
