644540-4
CONN RCPT 4P IDC 22AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

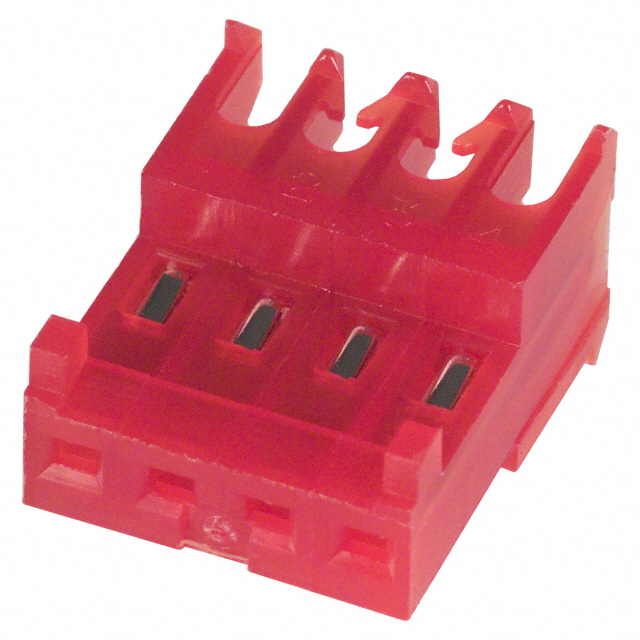

TE Connectivity AMP Connectors MTA-100 series 644540-4 is a 4-position, single-row receptacle connector featuring Insulation Displacement Connection (IDC) termination for 22 AWG wire. The tin-lead contact finish offers robust conductivity with a thickness of 80.0µin (2.03µm). This free-hanging (in-line) connector utilizes a locking ramp for secure mating and includes feed-through capabilities. Its 0.100" (2.54mm) pitch makes it suitable for compact designs. Applications span industrial automation, consumer electronics, and automotive systems where reliable wire termination is critical. The red housing color aids in visual identification.
Additional Information
Series: MTA-100RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin-Lead |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 22 AWG |
| Number of Positions | 4 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
