644460-2
CONN RCPT 2POS IDC 18AWG GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

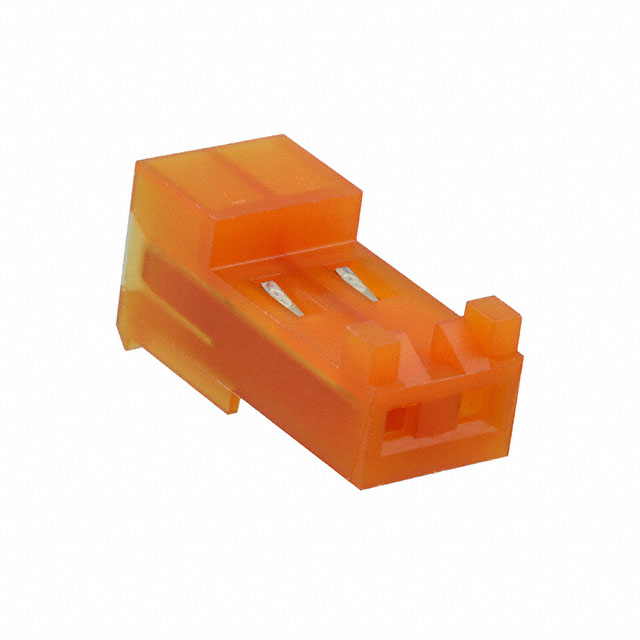

TE Connectivity AMP Connectors MTA-156 series receptacle connector, part number 644460-2, offers a 2-position, single-row configuration with a 0.156" (3.96mm) pitch. This free-hanging (in-line) connector utilizes Insulation Displacement Connection (IDC) termination for 18 AWG wire, accommodating discrete or ribbon cable. The female socket contacts feature a gold plating with a thickness of 30.0µin (0.76µm) for reliable conductivity. Designed with a locking ramp for secure mating and a polarizing key for correct orientation, this connector is suitable for applications in automotive, industrial, and consumer electronics. The bulk packaging ensures efficient integration into high-volume manufacturing processes.
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End, Polarizing Key |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18 AWG |
| Number of Positions | 2 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
Request a Quote
