643820-2
CONN RCPT 2P IDC 24AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

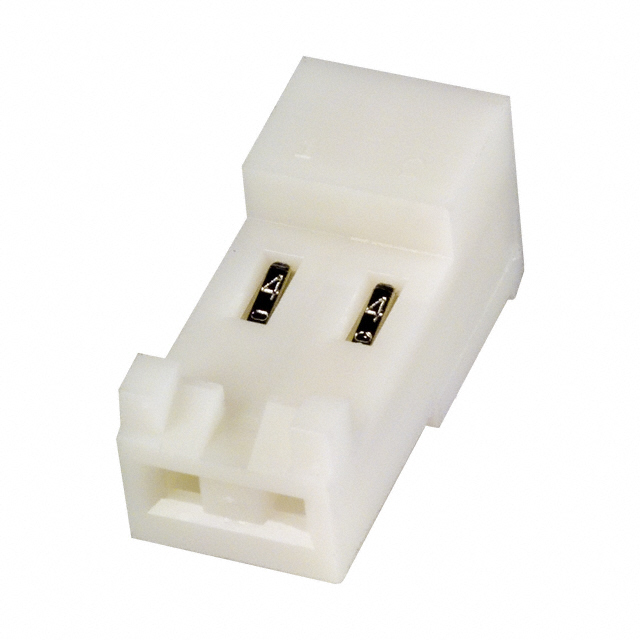

TE Connectivity AMP Connectors MTA-156 Series 643820-2 is a 2-position receptacle connector designed for wire termination via Insulation Displacement Connection (IDC). This white, free-hanging connector features a 0.156" (3.96mm) pitch and accepts 24 AWG discrete or ribbon cable. The female socket contacts are finished with 80.0µin (2.03µm) of Tin-Lead plating, ensuring reliable conductivity. Key features include a locking ramp for secure mating and a polarizing key for correct orientation. This component is widely utilized in automotive, industrial automation, and appliance control systems.
Additional Information
Series: MTA-156RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End, Polarizing Key |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin-Lead |
| Color | White |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 24 AWG |
| Number of Positions | 2 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
