643817-2
CONN RCPT 2P IDC 18AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

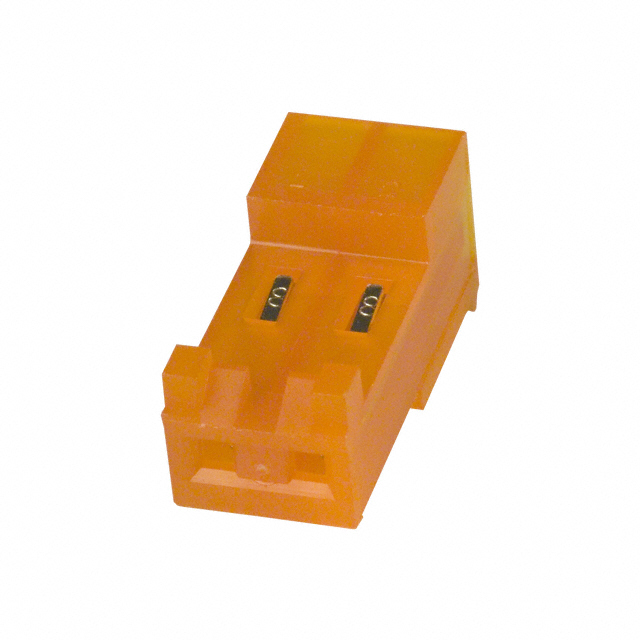

TE Connectivity AMP Connectors MTA-156 series 2-position receptacle connector, part number 643817-2, features a 3.96mm pitch for efficient, high-density interconnects. This free-hanging connector utilizes Insulation Displacement Connection (IDC) termination for 18 AWG wire, offering a tin-lead contact finish with a thickness of 80.0µin (2.03µm). Designed for reliable performance, it includes a locking ramp for secure mating and a polarizing key to prevent misconnections. The connector is suitable for discrete or ribbon cable applications. Commonly found in automotive, industrial, and consumer electronics, this component facilitates robust and dependable electrical connections.
Additional Information
Series: MTA-156RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End, Polarizing Key |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin-Lead |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18 AWG |
| Number of Positions | 2 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
