643816-8
CONN RCPT 8P IDC 28AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

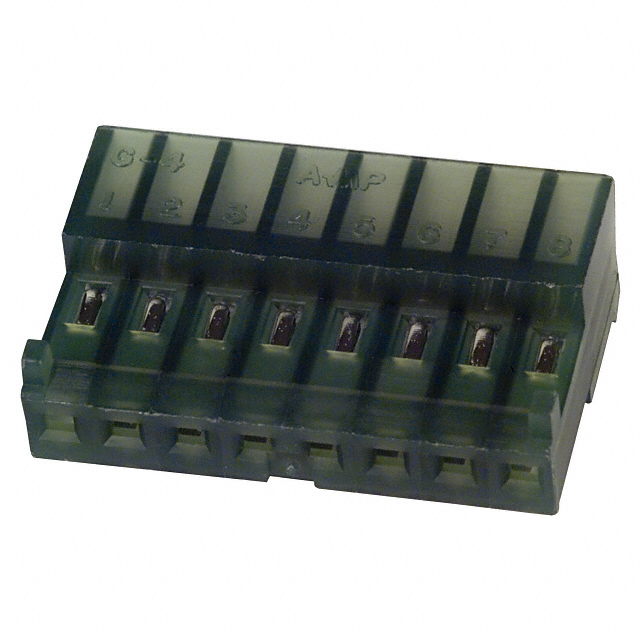

TE Connectivity AMP Connectors MTA-100 series 8-position receptacle connector, part number 643816-8. This free-hanging, inline connector features IDC termination for 28 AWG wire, supporting discrete or ribbon cable configurations. The receptacle utilizes female socket contacts with a tin-lead finish, 80.0µin (2.03µm) thick, ensuring reliable connectivity. A locking ramp provides secure mating. Designed for industrial automation, automotive, and consumer electronics applications, this connector operates with a 0.100" (2.54mm) pitch. The green housing is constructed for durability in demanding environments.
Additional Information
Series: MTA-100RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin-Lead |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 28 AWG |
| Number of Positions | 8 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
