643814-3
CONN RCPT 3P IDC 24AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

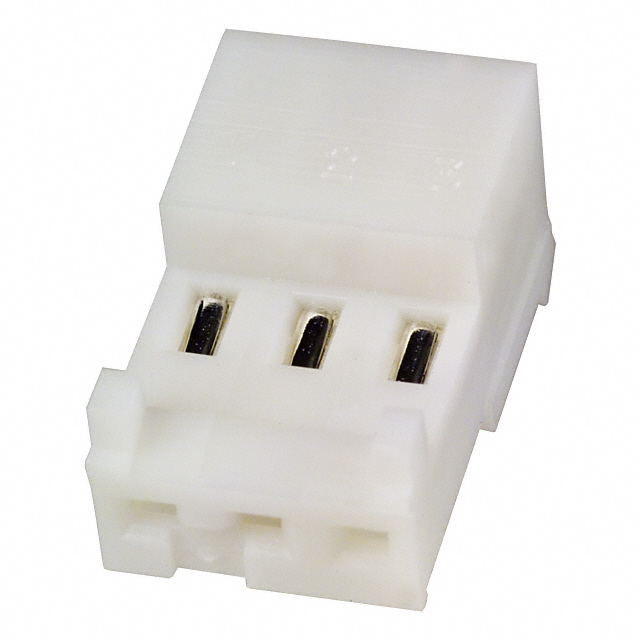

TE Connectivity AMP Connectors MTA-100 series offers a 3-position receptacle connector, part number 643814-3. This component features Insulation Displacement Connection (IDC) termination for discrete or ribbon cable up to 24 AWG. The female socket contacts are finished with 80.0µin (2.03µm) of Tin-Lead plating. Designed for free hanging (in-line) or right-angle mounting, it includes a locking ramp for secure fastening and a closed end. The standard 0.100" (2.54mm) pitch makes it suitable for various applications in the automotive and industrial automation sectors. Supplied in bulk packaging.
Additional Information
Series: MTA-100RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin-Lead |
| Color | White |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 24 AWG |
| Number of Positions | 3 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
