643813-5
CONN RCPT 5P IDC 22AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

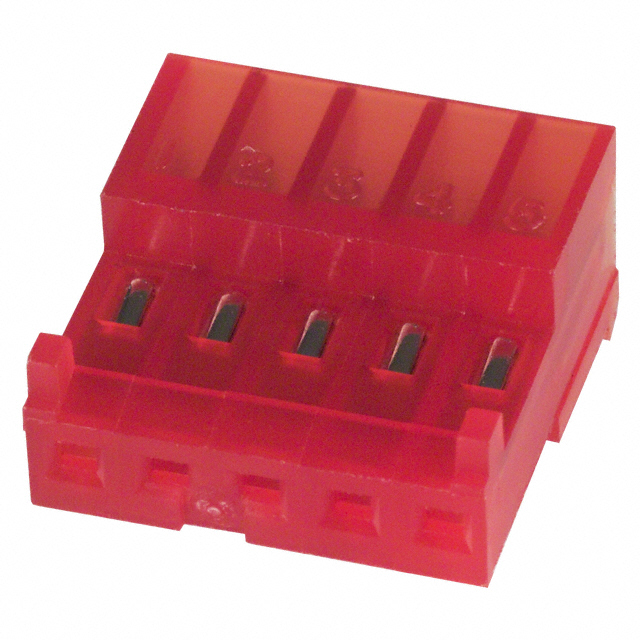

TE Connectivity AMP Connectors MTA-100 Series receptacle connector, part number 643813-5. This 5-position connector features Insulation Displacement Connection (IDC) termination for 22 AWG wire. The tin-lead contact finish provides reliable conductivity with a thickness of 80.0µin (2.03µm). Designed for discrete or ribbon cables, this red receptacle offers a 0.100" (2.54mm) pitch. Mounting options include free hanging (in-line) and right angle configurations, with a locking ramp for secure mating. The closed-end design ensures proper termination. This component is widely utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: MTA-100RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin-Lead |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 22 AWG |
| Number of Positions | 5 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
