641218-6
CONN RCPT 6POS IDC 20AWG GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

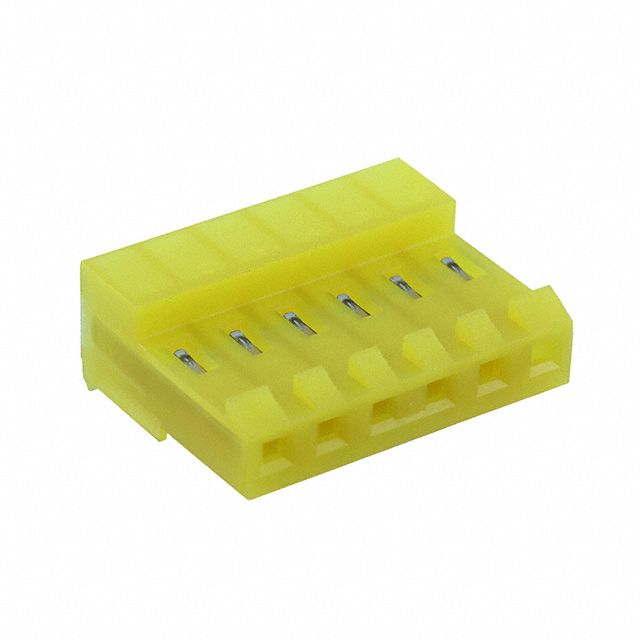

TE Connectivity AMP Connectors MTA-156 series receptacle connector, part number 641218-6. This 6-position, single-row connector utilizes Insulation Displacement Connection (IDC) termination for 20 AWG discrete or ribbon wire. Featuring a gold contact finish with a thickness of 30.0µin (0.76µm), it offers robust performance. The connector is designed for free-hanging (in-line) mounting and includes a locking ramp for secure mating. Its yellow housing and closed-end feature are characteristic of the MTA-156 family, which is widely used in industrial automation, automotive applications, and consumer electronics for reliable wire-to-board interconnection.
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 20 AWG |
| Number of Positions | 6 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
