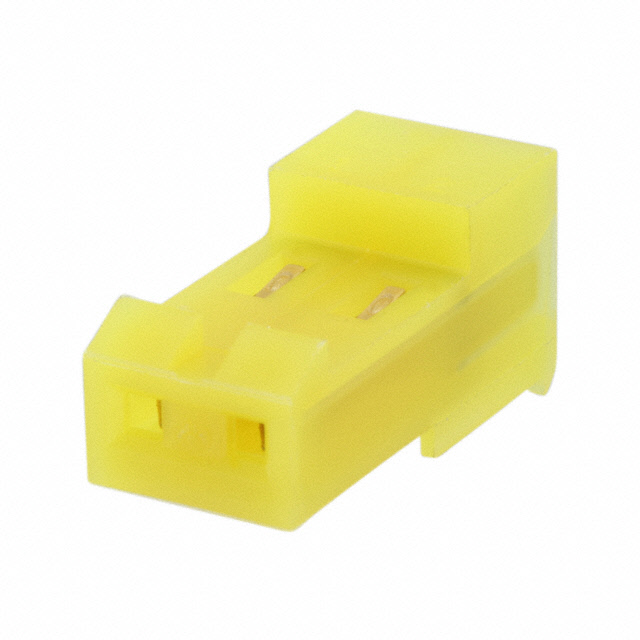

641218-2
CONN RCPT 2POS IDC 20AWG GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More
TE Connectivity AMP Connectors MTA-156 series receptacle connector, part number 641218-2. This 2-position connector features Insulation Displacement Connection (IDC) termination for 20 AWG discrete or ribbon cable. The gold-plated female socket contacts offer a 30.0µin (0.76µm) finish for enhanced conductivity and durability. Designed for free-hanging (in-line) mounting, this connector incorporates a locking ramp for secure mating and a closed end for protection. The 0.156" (3.96mm) pitch and single row configuration are suitable for various signal and power applications across automotive, industrial automation, and consumer electronics sectors. Packaged in bulk.
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 20 AWG |
| Number of Positions | 2 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
