641150-2
CONN RCPT 2POS IDC 22AWG GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

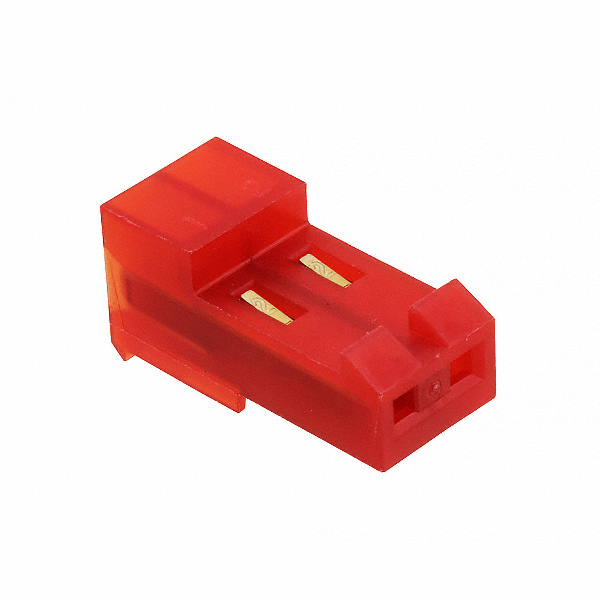

TE Connectivity AMP Connectors MTA-156 series receptacle connector, part number 641150-2. This 2-position, single-row connector features Insulation Displacement Connection (IDC) termination for 22 AWG wire. The female socket contacts offer a gold contact finish with a thickness of 15.0µin (0.38µm) for enhanced conductivity and durability. Designed for free-hanging (in-line) mounting, it includes a locking ramp for secure mating. The red housing is constructed for reliable performance in various applications, including automotive and industrial control systems. The 0.156" (3.96mm) pitch facilitates compact assembly.
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22 AWG |
| Number of Positions | 2 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
