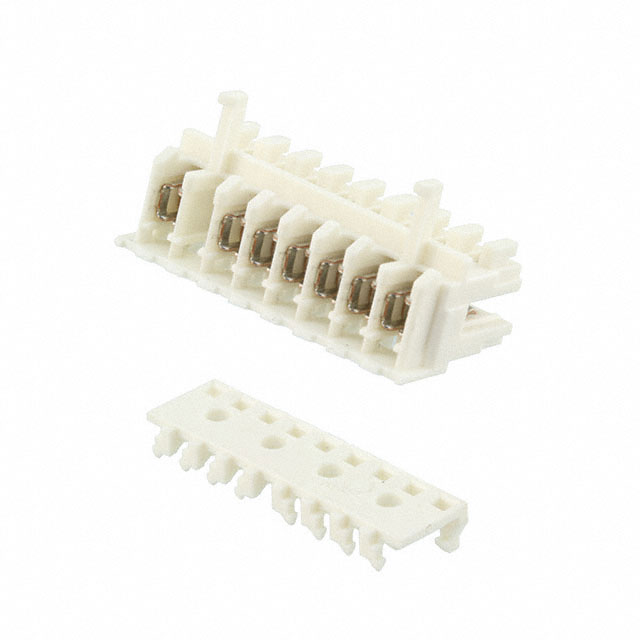

6-1534798-8
CONN RCPT 8POS IDC 22-24AWG TINManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More
TE Connectivity AMP Connectors DuoPlug Series 6-1534798-8 is an 8-position, single-row receptacle connector designed for discrete wire termination via Insulation Displacement Connection (IDC). This free-hanging (in-line) or right-angle connector features a 2.50mm pitch and accepts wire gauges from 22 to 24 AWG. The female blade socket contacts are finished with tin for reliable connectivity. This component is commonly utilized in industrial automation, automotive electronics, and consumer electronics applications for its efficient and robust wire termination capabilities.
Additional Information
Series: DuoPlugRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mates to PCB |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Color | Natural |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 22-24 AWG |
| Number of Positions | 8 |
| Pitch | 0.098"" (2.50mm) |
| Contact Type | Female Blade Socket |
| Fastening Type | - |
| Row Spacing | - |
| Contact Finish Thickness | - |
| Wire Type | Discrete |
| Cable Termination | IDC |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy
2-284865-0
CONN RCPT 10POS IDC 22-24AWG TIN

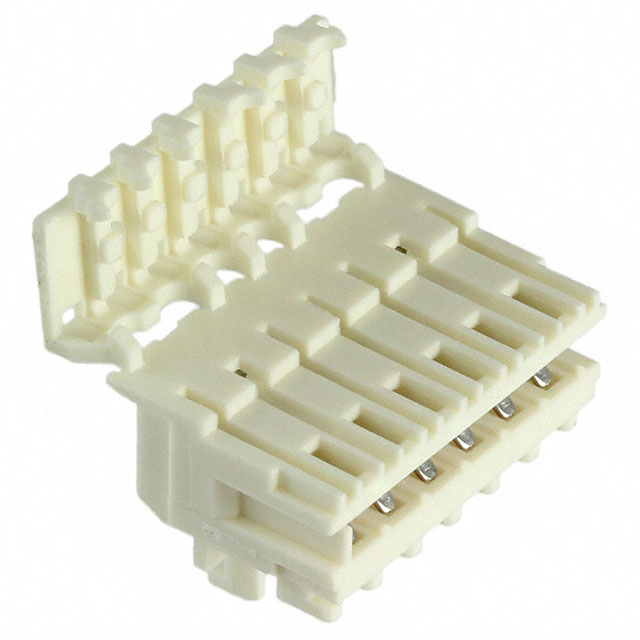

4-1534796-6
CONN RCPT 6POS IDC 22-24AWG TIN

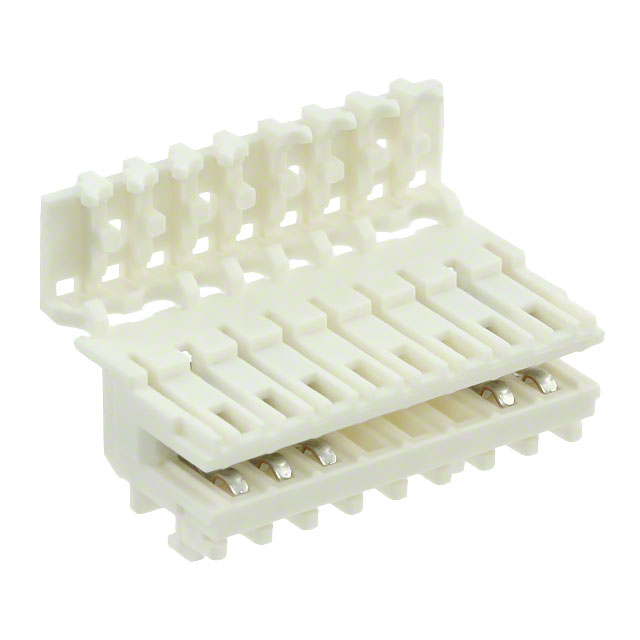

4-1534798-8
