4-644565-5
CONN RCPT 15POS IDC 28AWG TINManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

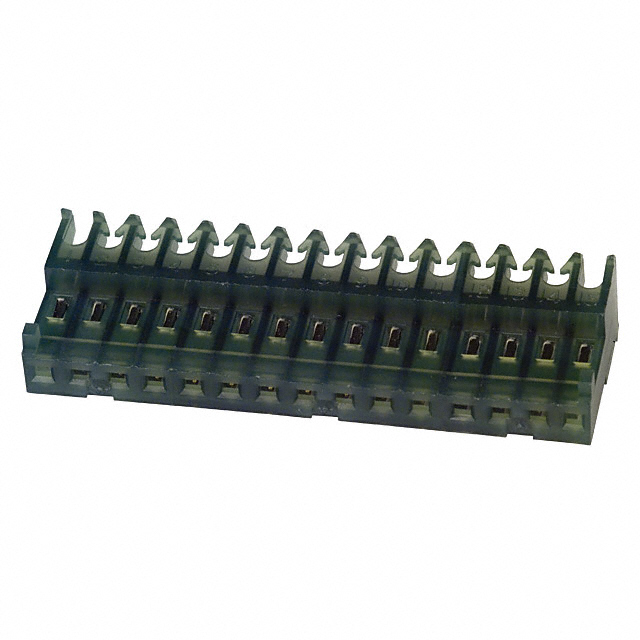

TE Connectivity AMP Connectors MTA-100 series receptacle connector, part number 4-644565-5, offers a 15-position, single-row configuration designed for discrete or ribbon cable termination via Insulation Displacement Connector (IDC) technology. This Green receptacle features a 0.100" (2.54mm) pitch and a tin contact finish with 80.0µin (2.03µm) thickness, ensuring reliable electrical connections. The design incorporates a locking ramp for secure mating and supports feed-through functionality. Mounting options include free hanging (in-line) and right-angle configurations. This component is suitable for applications in industrial automation, consumer electronics, and telecommunications.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 28 AWG |
| Number of Positions | 15 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
