4-644329-2
CONN RCPT 12POS IDC 18AWG TINManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

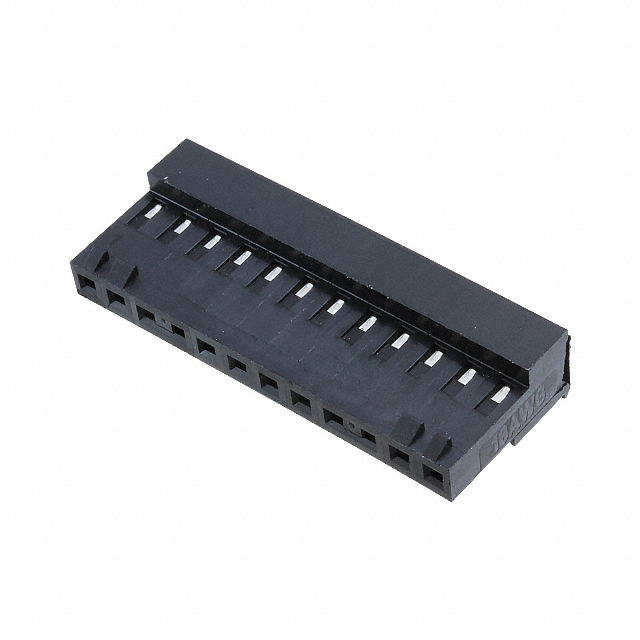

TE Connectivity AMP Connectors MTA-156 Series 4-644329-2 is a 12-position, single-row receptacle connector featuring Insulation Displacement Connection (IDC) termination for 18 AWG discrete or ribbon cable. The contact finish is tin with a thickness of 80.0µin (2.03µm), and it utilizes female socket contacts. This free-hanging connector incorporates a locking ramp for secure mating and a closed-end design. The MTA-156 series is commonly found in automotive, industrial automation, and appliance control applications where reliable wire-to-board connectivity is critical. This component is supplied in bulk packaging.
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18 AWG |
| Number of Positions | 12 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
