4-641239-2
CONN RCPT 12POS IDC 26AWG GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

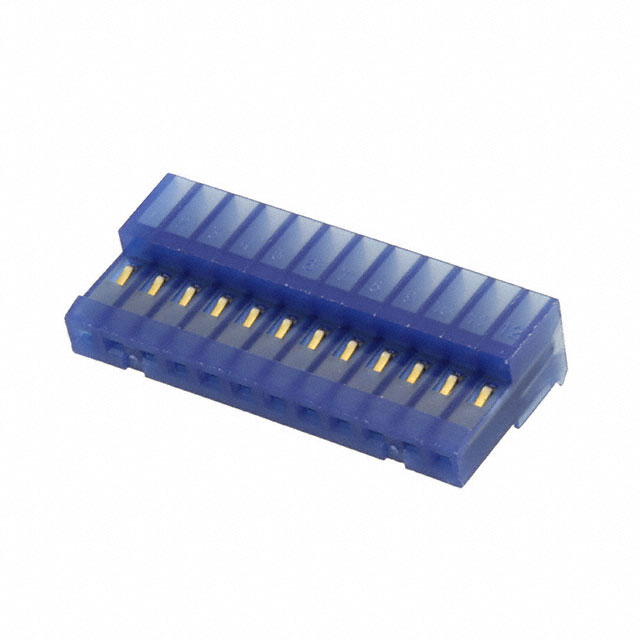

TE Connectivity AMP Connectors MTA-100 series receptacle connector, part number 4-641239-2. This 12-position, single-row connector features Insulation Displacement Connection (IDC) termination for 26 AWG discrete or ribbon cable. The gold-plated female socket contacts offer a contact finish thickness of 30.0µin (0.76µm). Designed for free hanging (in-line) or right-angle mounting with a locking ramp, this blue connector operates with a 0.100" (2.54mm) pitch. It is suitable for applications in telecommunications, industrial controls, and consumer electronics.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 26 AWG |
| Number of Positions | 12 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
