3-644381-4
CONN RCPT 4POS IDC 18AWG TINManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

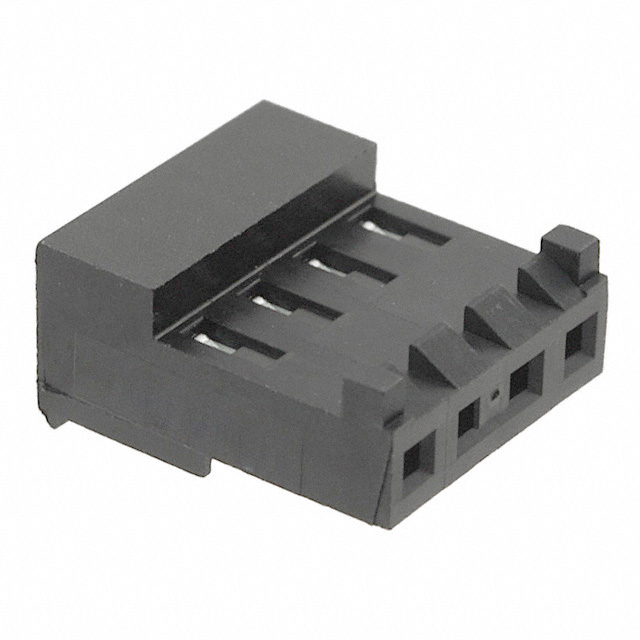

TE Connectivity AMP Connectors presents the MTA-156 series 4-position receptacle connector, part number 3-644381-4. This free-hanging connector utilizes Insulation Displacement Connection (IDC) technology for efficient wire termination. Designed for 18 AWG discrete or ribbon cable, it features a tin contact finish with a thickness of 80.0µin (2.03µm) on female socket contacts. The 0.156" (3.96mm) pitch and single row configuration facilitate compact assembly. Key features include a locking ramp for secure mating, a polarizing key for correct orientation, and a closed-end design. This component is widely employed in automotive, industrial automation, and consumer electronics applications requiring reliable wire-to-board interconnection.
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Closed End, Polarizing Key |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18 AWG |
| Number of Positions | 4 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
Request a Quote
