3-641655-3
CONN RCPT 3POS IDC 26AWG TINManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

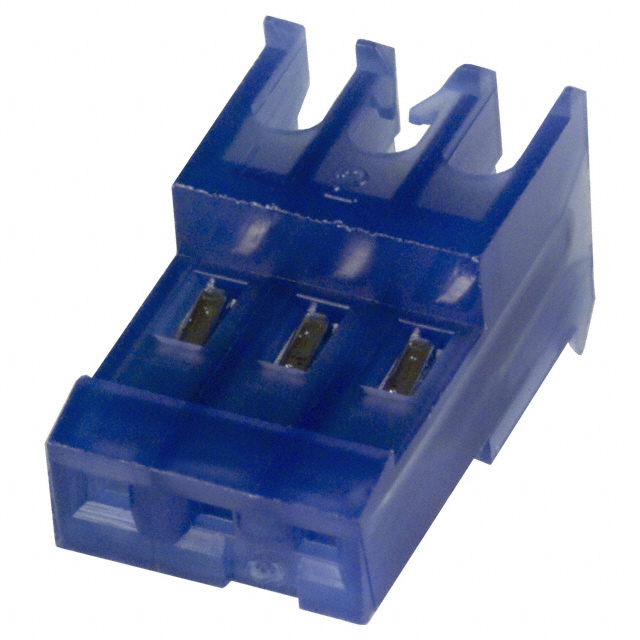

TE Connectivity AMP Connectors MTA-100 series 3-641655-3 is a 3-position receptacle connector utilizing Insulation Displacement Connection (IDC) termination for 26 AWG wire. This blue, free-hanging (in-line) connector features a 0.100" (2.54mm) pitch and a tin contact finish with a thickness of 80.0µin (2.03µm). The female socket contacts are designed with a locking ramp for secure mating. This component is suitable for discrete or ribbon cable applications, commonly found in industrial automation, automotive, and consumer electronics sectors. The connector also includes feed-through capabilities and offers a right-angle mounting option.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 26 AWG |
| Number of Positions | 3 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
