3-640622-7
CONN RCPT 7POS IDC 26AWG TINManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

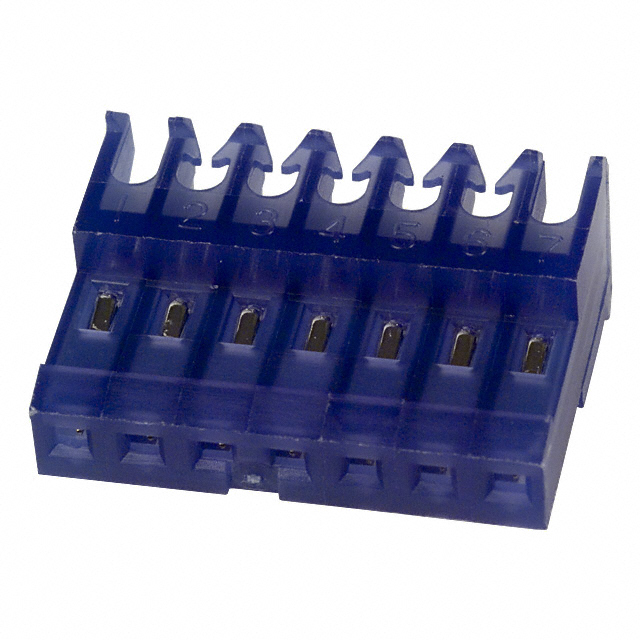

TE Connectivity AMP Connectors MTA-100 Series Receptacle Connector, part number 3-640622-7, provides a 7-position, single-row solution for wire termination via Insulation Displacement Connection (IDC). This blue receptacle features a tin contact finish with 80.0µin (2.03µm) thickness, designed for discrete or ribbon cable with a 26 AWG wire gauge. The 0.100" (2.54mm) pitch facilitates compact assembly. Mounting options include free hanging (in-line) and right-angle configurations, secured by a locking ramp. This component is commonly utilized in automotive and industrial applications requiring reliable interconnects.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 26 AWG |
| Number of Positions | 7 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
Request a Quote
