2-111492-6
CONN PLUG 60P IDC 26-28AWG GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

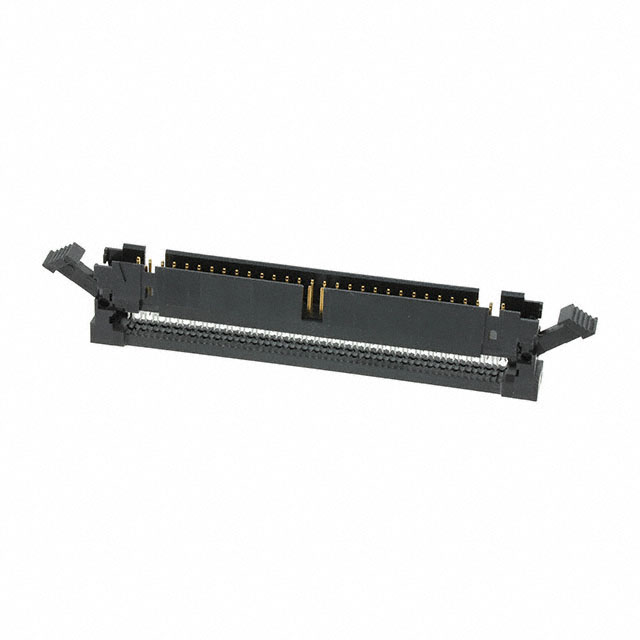

60 Position Rectangular Plug Connector IDC Gold 26-28 AWG
Additional Information
Series: AMP-LatchRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through, Polarizing Key |
| Packaging | Tray |
| Connector Type | Plug |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 26-28 AWG |
| Number of Positions | 60 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks |
| Row Spacing | 0.100"" (2.54mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 2 |
