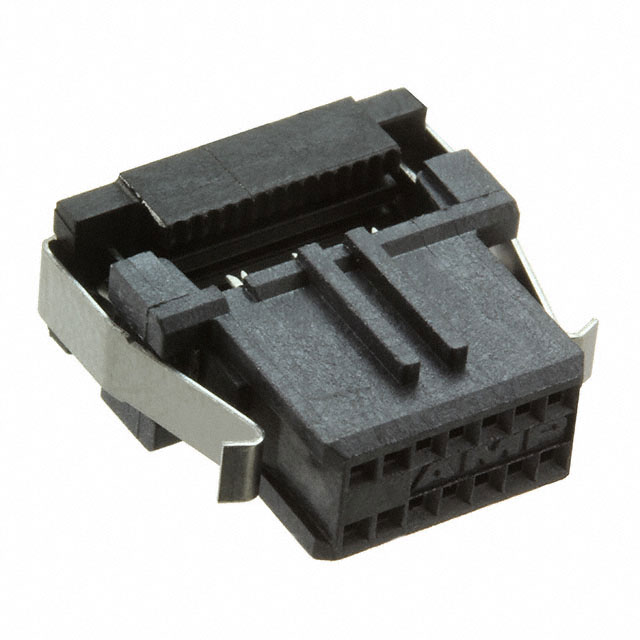

2-111196-6
CONN RCPT 14P IDC 30-32AWG GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More
14 Position Rectangular Receptacle Connector IDC Gold 30-32 AWG
Additional Information
Series: AMPMODU System 50RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Tray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 30-32 AWG |
| Number of Positions | 14 |
| Pitch | 0.050"" (1.27mm) |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Row Spacing | 0.100"" (2.54mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 2 |
