1658624-2
CONN RCPT 14POS IDCManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

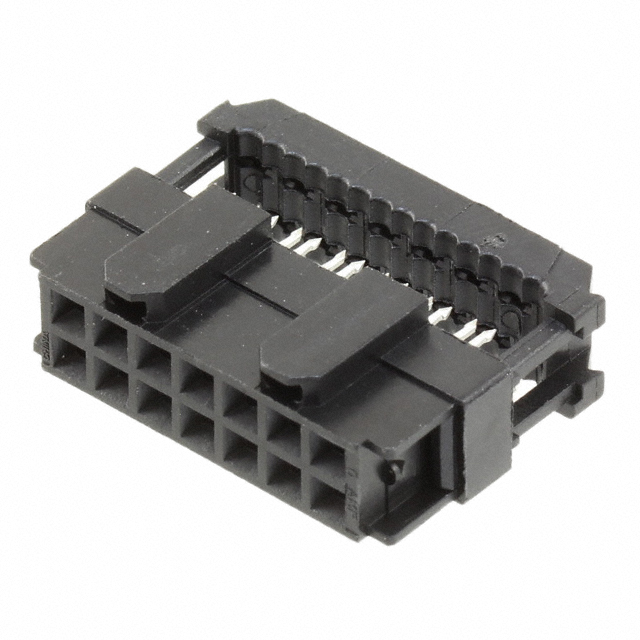

14 Position Rectangular Receptacle Connector IDC Gold or Gold-Palladium
Additional Information
Series: AMP-LatchRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through, Polarizing Key |
| Packaging | Tube |
| Connector Type | Receptacle |
| Contact Finish | Gold or Gold-Palladium |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | - |
| Number of Positions | 14 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | Forked |
| Fastening Type | - |
| Row Spacing | 0.100"" (2.54mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 2 |
Request a Quote
