1-641437-2
CONN PLUG 12P IDC 22AWG TIN-LEADManufacturer: TE Connectivity AMP Connectors
Categories: Free Hanging, Panel Mount
Quality Control: Learn More

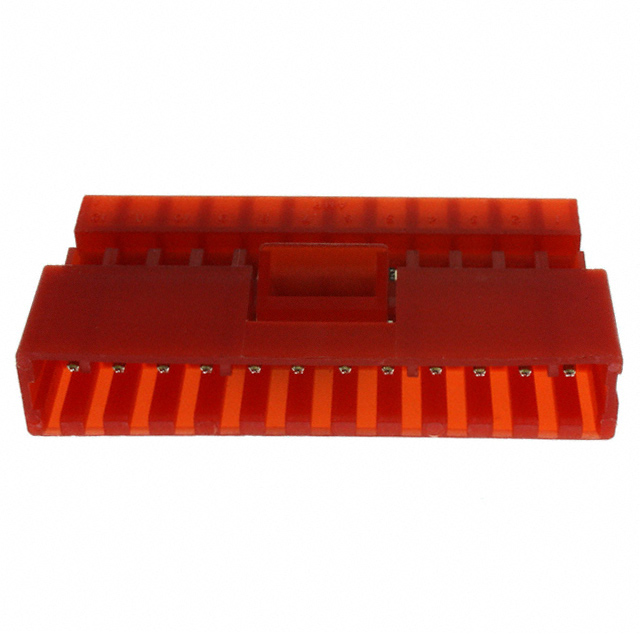

TE Connectivity AMP Connectors MTA-156 Series 1-641437-2 is a 12-position, single-row plug connector designed for 22 AWG wire. This connector utilizes Insulation Displacement Connection (IDC) technology for efficient cable termination, eliminating the need for pre-stripping wires. The contact finish is Tin-Lead with a thickness of 80.0µin (2.03µm). Featuring a robust red housing, this component is suitable for free-hanging (in-line) or right-angle mounting configurations. The 0.156" (3.96mm) pitch facilitates high-density connections. Applications for this connector are found in automotive, industrial automation, and consumer electronics sectors where reliable interconnect solutions are critical.
Additional Information
Series: MTA-156RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed End |
| Packaging | Bulk |
| Connector Type | Plug |
| Contact Finish | Tin-Lead |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 22 AWG |
| Number of Positions | 12 |
| Pitch | 0.156"" (3.96mm) |
| Contact Type | Male Pin |
| Fastening Type | - |
| Row Spacing | - |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Wire Type | Discrete or Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 1 |
Request a Quote
