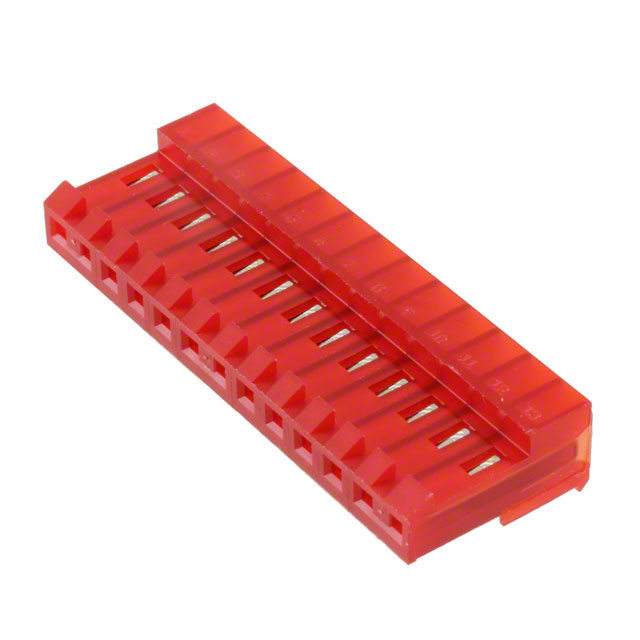

1-640428-3

CONN RCPT 13P IDC 22AWG TIN-LEAD

Manufacturer: TE Connectivity AMP Connectors

Categories: Free Hanging, Panel Mount

Quality Control: Learn More

TE Connectivity AMP Connectors MTA-156 series 1-640428-3 is a 13-position receptacle connector with an Insulation Displacement Connection (IDC) termination method. Designed for 22 AWG wire, it features a 0.156" (3.96mm) pitch and a tin-lead contact finish with a thickness of 80.0µin (2.03µm). The connector is free-hanging and includes a locking ramp for secure mating. Its red color and closed-end configuration are characteristic of the MTA-156 series. This component is suitable for applications in automotive, industrial, and consumer electronics where reliable wire-to-board or wire-to-wire connections are required. The receptacle utilizes female socket contacts.

Additional Information

Series: MTA-156RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
FeaturesClosed End
PackagingBulk
Connector TypeReceptacle
Contact FinishTin-Lead
ColorRed
Mounting TypeFree Hanging (In-Line)
Wire Gauge22 AWG
Number of Positions13
Pitch0.156"" (3.96mm)
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Row Spacing-
Contact Finish Thickness80.0µin (2.03µm)
Wire TypeDiscrete or Ribbon Cable
Cable TerminationIDC
Number of Rows1
