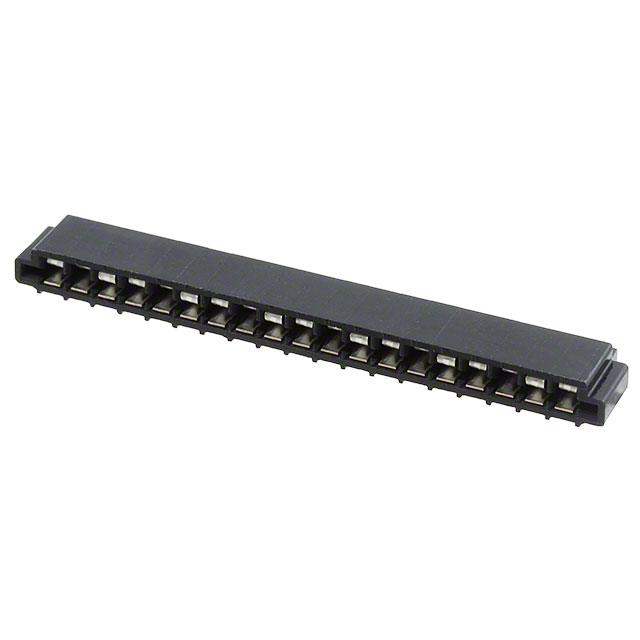

6-520314-7
CONN FFC FPC TOP 17POS 2.54MM RAManufacturer: TE Connectivity AMP Connectors
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
17 Position FFC, FPC Connector Contacts, Top 0.100"" (2.54mm) Through Hole, Right Angle
Additional Information
Series: TriomateRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Voltage Rating | 250V |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 17 |
| Pitch | 0.100"" (2.54mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Kinked Pin |
| Height Above Board | 0.190"" (4.83mm) |
| Locking Feature | - |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | - |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| Cable End Type | Straight |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Top |
