487576-9

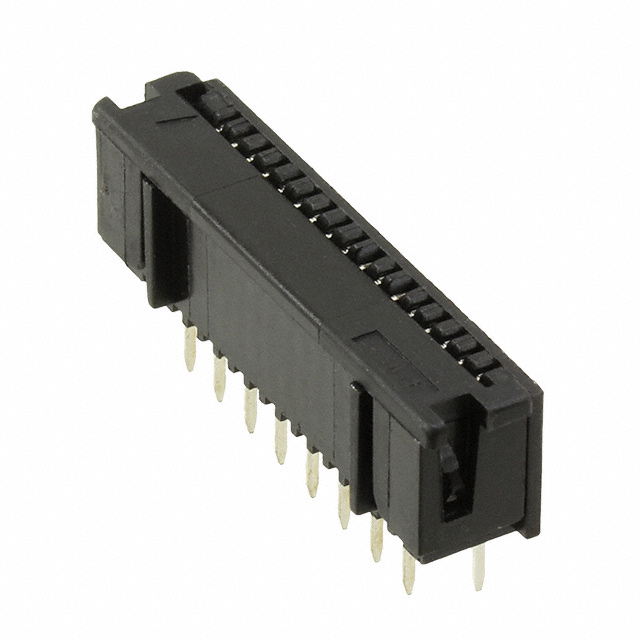

CONN FFC VERT 17POS 1.27MM PCBManufacturer: TE Connectivity AMP Connectors
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
17 Position FFC Connector Contacts, Vertical - 1 Sided 0.050"" (1.27mm) Through Hole
Additional Information
Series: AMPMODURoHS Status: Request inventory verificationManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tube |
| Contact Finish | Tin |
| Voltage Rating | 150V |
| Mounting Type | Through Hole |
| Number of Positions | 17 |
| Pitch | 0.050"" (1.27mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Solder |
| Height Above Board | 0.310"" (7.87mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | - |
| Actuator Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.10mm ~ 0.31mm |
| Housing Material | Thermoplastic |
| Cable End Type | Straight |
| Flat Flex Type | FFC |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
