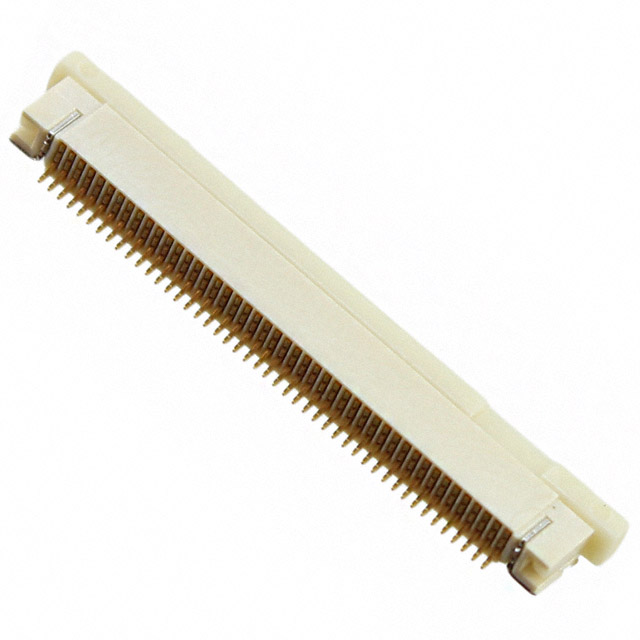

4-1734592-6
CONN FPC BOTTOM 46POS 0.5MM R/AManufacturer: TE Connectivity AMP Connectors
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 4-1734592-6, a 46-position FPC connector designed for surface mount, right-angle applications. This component features a 0.50mm pitch and a bottom-contact configuration, ideal for compact designs where board space is at a premium. The connector utilizes a liquid crystal polymer (LCP) housing with a UL94 V-0 flammability rating and a gold-plated phosphor bronze contact material for reliable, low-resistance connections. Key features include a slide lock mechanism for secure mating and solder retention for enhanced mechanical stability. The zero insertion force (ZIF) design facilitates ease of assembly and disassembly of FPC cables with a thickness of 0.30mm. With an operating temperature range of -40°C to 85°C and a voltage rating of 250V, this connector is suitable for demanding applications in the automotive, consumer electronics, and industrial automation sectors. It is supplied on tape and reel for automated placement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 250V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 46 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.081"" (2.05mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tapered |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
