3-1775333-5
CONN FPC BOTTOM 35POS 0.5MM R/AManufacturer: TE Connectivity AMP Connectors
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More

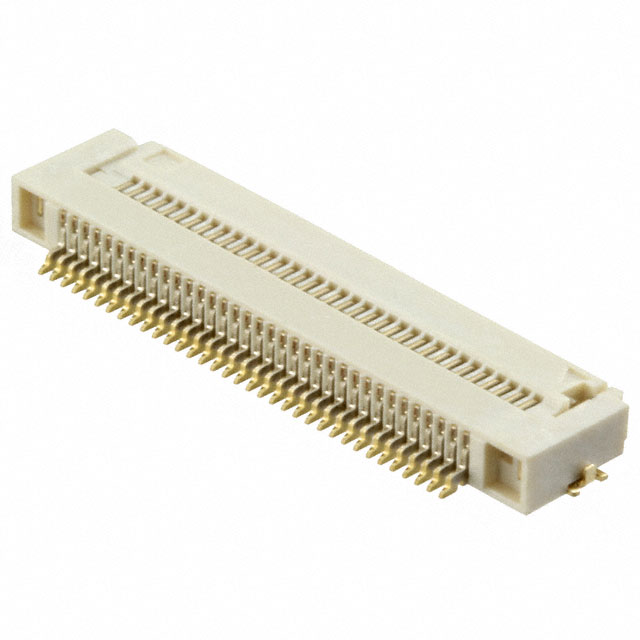

TE Connectivity AMP Connectors 3-1775333-5 is a 35-position FPC connector featuring bottom-entry contact configuration with a 0.50mm pitch. This right-angle, surface-mount component utilizes Liquid Crystal Polymer (LCP) for both housing and actuator materials, ensuring UL94 V-0 flammability rating. The connector incorporates solder retention and a flip-lock mechanism for secure mating, designed for standard 0.30mm FPC thickness. Phosphor bronze contacts with gold plating provide reliable termination via solder. Operating within a -20°C to 85°C range and rated for 250V, this connector is suitable for applications in consumer electronics, automotive, and industrial automation where space-constrained, high-density interconnects are critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Bulk |
| Contact Finish | Gold |
| Voltage Rating | 250V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 35 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | -20°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.081"" (2.05mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Straight |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
