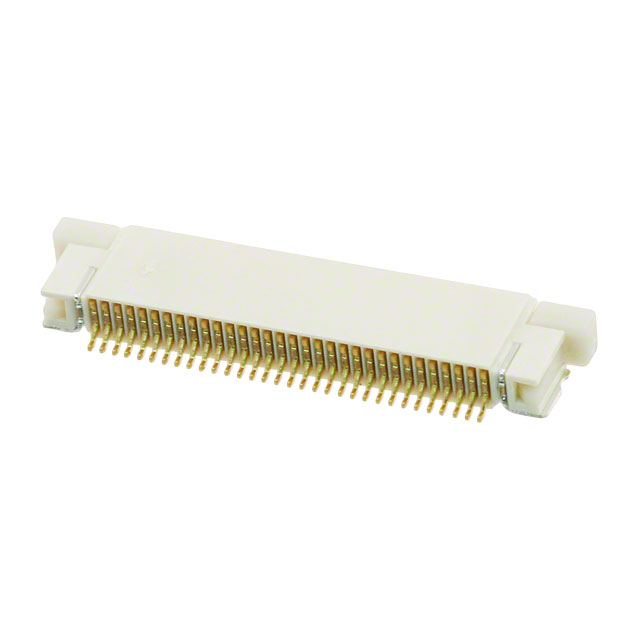

3-1734839-2

CONN FPC TOP 32POS 0.5MM R/A

Manufacturer: TE Connectivity AMP Connectors

Categories: FFC, FPC (Flat Flexible) Connector Assemblies

Quality Control: Learn More

TE Connectivity AMP Connectors 3-1734839-2 is a 32-position FPC connector designed for surface mount, right-angle applications with a 0.50mm pitch. This component features a top-entry configuration and a slide lock mechanism for secure mating. The phosphor bronze contacts are finished with gold plating for enhanced conductivity and durability, and incorporate solder retention for a reliable termination. With a height of 0.081" (2.05mm) above the board, this connector is suitable for zero insertion force (ZIF) operation and supports FPC cables with a thickness of 0.30mm. The housing and actuator are constructed from UL94 V-0 rated thermoplastic. This connector is rated for 250V and operates within a temperature range of -20°C to 85°C. It is supplied on tape and reel. Typical applications include consumer electronics, automotive systems, and industrial automation.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
FeaturesSolder Retention, Zero Insertion Force (ZIF)
PackagingTape & Reel (TR)
Contact FinishGold
Voltage Rating250V
Mounting TypeSurface Mount, Right Angle
Number of Positions32
Pitch0.020"" (0.50mm)
Operating Temperature-20°C ~ 85°C
TerminationSolder
Height Above Board0.081"" (2.05mm)
Locking FeatureSlide Lock
Material Flammability RatingUL94 V-0
Actuator MaterialThermoplastic
Contact MaterialPhosphor Bronze
FFC, FCB Thickness0.30mm
Housing MaterialThermoplastic
Cable End TypeTapered
Flat Flex TypeFPC
Connector/Contact TypeContacts, Top
