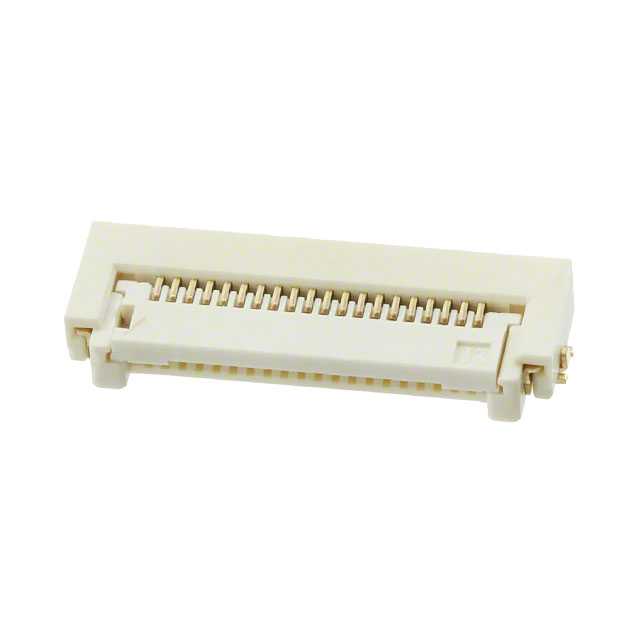

2-1775333-0
CONN FPC BOTTOM 20POS 0.5MM R/AManufacturer: TE Connectivity AMP Connectors
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors 2-1775333-0 is a 20-position FPC connector with a 0.5mm pitch. This right-angle, surface-mount component features bottom-entry contacts with gold plating over phosphor bronze for reliable conductivity. The liquid crystal polymer (LCP) housing and actuator, rated UL94 V-0, provide robust mechanical and thermal properties. Designed with solder retention and a flip-lock mechanism for secure cable termination, this connector supports FPC/FFC cable thicknesses of 0.30mm. Its 2.05mm height above the board and 250V rating make it suitable for applications in consumer electronics and automotive systems. The component is supplied on tape and reel for automated assembly and operates within a temperature range of -20°C to 85°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 250V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | -20°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.081"" (2.05mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Straight |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
