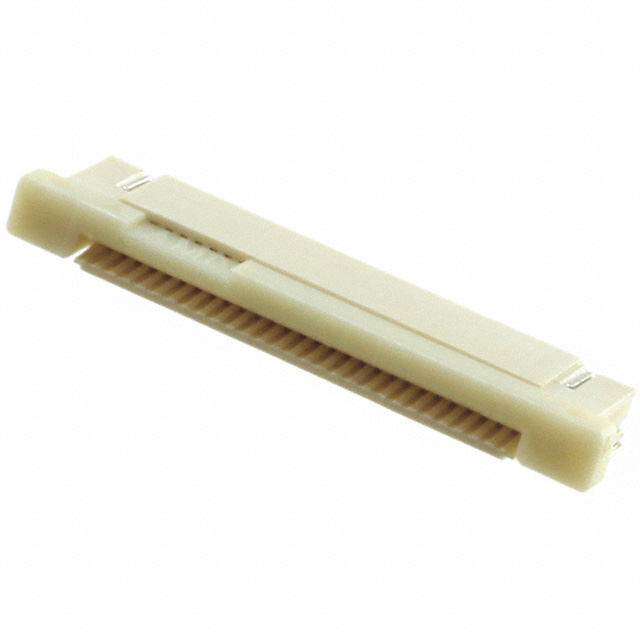

2-1734592-8

CONN FPC BOTTOM 28POS 0.5MM R/A

Manufacturer: TE Connectivity AMP Connectors

Categories: FFC, FPC (Flat Flexible) Connector Assemblies

Quality Control: Learn More

TE Connectivity AMP Connectors 2-1734592-8 is a 28-position FPC connector featuring a bottom entry and 0.50mm pitch. This right-angle, surface-mount component is constructed with a Liquid Crystal Polymer (LCP) housing and Phosphor Bronze contacts with Gold plating for reliable termination. It supports FPC thickness of 0.30mm and offers a robust slide lock mechanism for secure mating. The design incorporates solder retention and Zero Insertion Force (ZIF) capabilities, ensuring ease of assembly and dependable electrical connections. Operating within a temperature range of -40°C to 85°C with a voltage rating of 250V, this connector is suitable for applications in automotive, consumer electronics, and industrial automation where space-saving and high-density interconnects are critical. Packaged on tape and reel, the 2-1734592-8 is designed for automated manufacturing processes.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
FeaturesSolder Retention, Zero Insertion Force (ZIF)
PackagingTape & Reel (TR)
Contact FinishGold
Voltage Rating250V
Mounting TypeSurface Mount, Right Angle
Number of Positions28
Pitch0.020"" (0.50mm)
Operating Temperature-40°C ~ 85°C
TerminationSolder
Height Above Board0.081"" (2.05mm)
Locking FeatureSlide Lock
Material Flammability RatingUL94 V-0
Actuator MaterialThermoplastic
Contact MaterialPhosphor Bronze
FFC, FCB Thickness0.30mm
Housing MaterialLiquid Crystal Polymer (LCP)
Cable End TypeTapered
Flat Flex TypeFPC
Connector/Contact TypeContacts, Bottom
