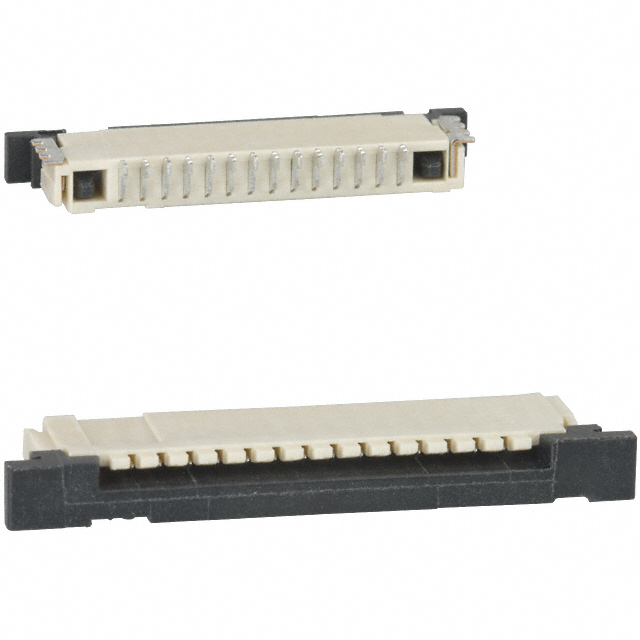

1-487951-4
CONN FPC TOP 14POS 1MM R/AManufacturer: TE Connectivity AMP Connectors
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
14 Position FPC Connector Contacts, Top 0.039"" (1.00mm) Surface Mount, Right Angle
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Bulk |
| Contact Finish | Tin-Lead |
| Voltage Rating | 200V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 14 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.101"" (2.56mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | - |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Cable End Type | Straight |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Top |
