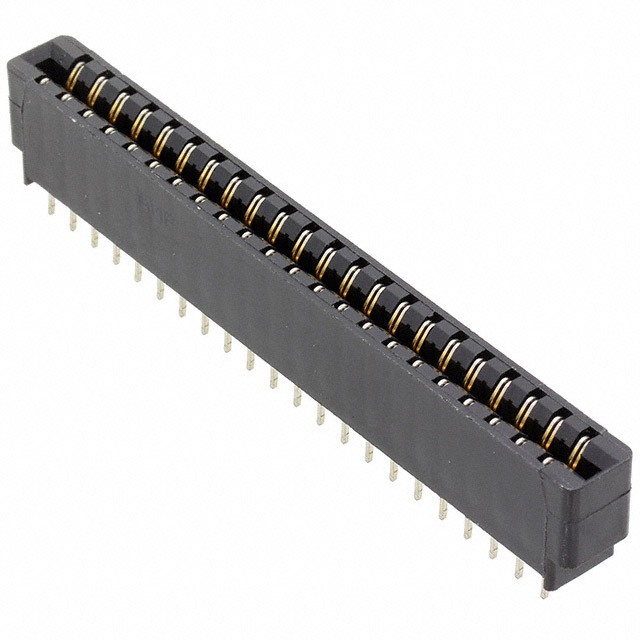

A6D22DS29C2
CONN EDGE DUAL FMALE 44POS 0.156Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors A6D22DS29C2 is a 44-position dual-readout female edgeboard connector featuring a 0.156" (3.96mm) pitch. This through-hole mounted component utilizes a gold contact finish with a thickness of 30.0µin (0.76µm) over a copper alloy contact material. Designed for robust operation, it offers an operating temperature range of -55°C to 125°C. The connector is supplied in bulk packaging and is suitable for applications within the telecommunications and industrial automation sectors.
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Pitch | 0.156"" (3.96mm) |
| Operating Temperature | -55°C ~ 125°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | - |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
