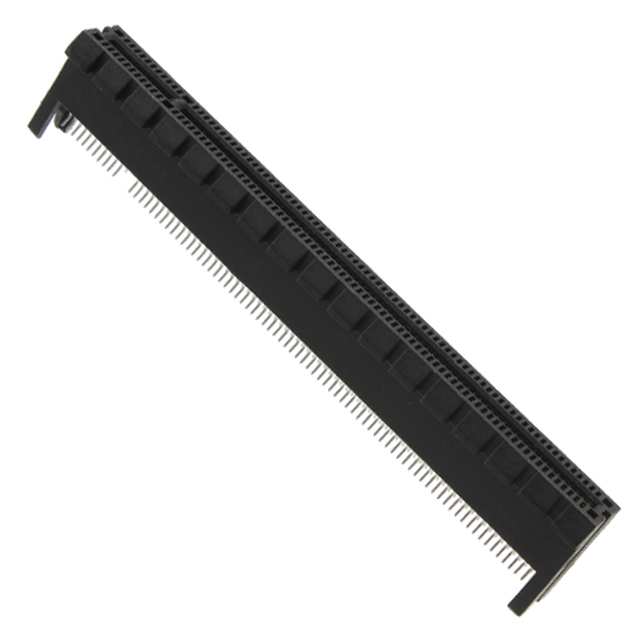

8-1734857-5
CONN PCI EXP FMALE 164POS 0.039Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More

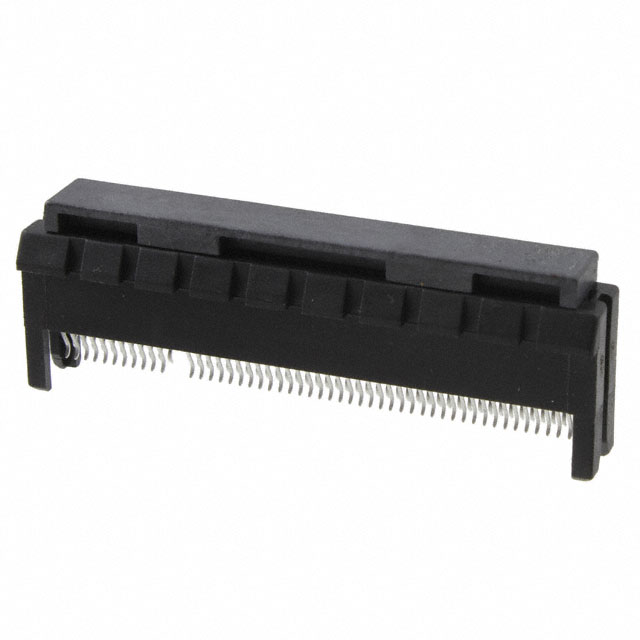

164 Position Female Connector PCI Express™ Gold 0.039"" (1.00mm) Black
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Card Extender, Locking Ramp |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 164 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | PCI Express™ |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy
2360411-1
CONN EDGE DUAL FMALE 48POS GOLD
2007088-3
CONN EDGE DUAL FML 24POS 0.100

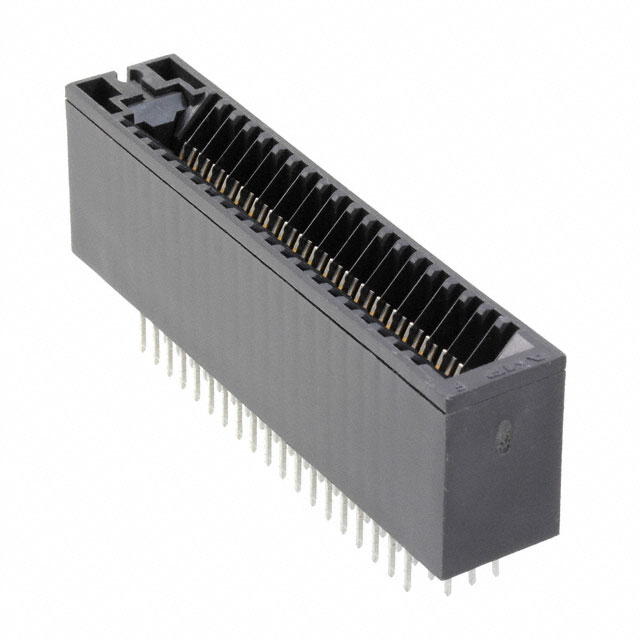

650281-1
