7-530664-3
CONN EDGE DUAL FMALE 30POS 0.125Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More

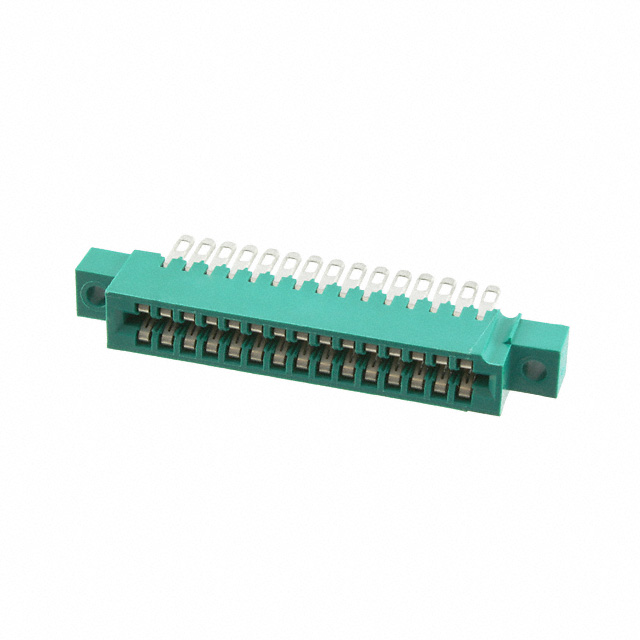

TE Connectivity AMP Connectors 7-530664-3 is a 30-position dual female edge card connector with a 0.125" (3.18mm) pitch. This connector features gold contact plating with a thickness of 30.0µin (0.76µm) over a phosphor bronze contact material. Designed for card thicknesses ranging from 0.055" to 0.070" (1.40mm to 1.78mm), it offers a dual read-out configuration. The connector includes a flush mount flange with a top opening and unthreaded mounting holes. Termination is via solder eyelets. This component is utilized in industrial and telecommunications applications. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Green |
| Mounting Type | Panel Mount |
| Number of Positions | 30 |
| Pitch | 0.125"" (3.18mm) |
| Operating Temperature | - |
| Read Out | Dual |
| Contact Type | - |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.055"" ~ 0.070"" (1.40mm ~ 1.78mm) |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128"" (3.25mm) Dia |
| Termination | Solder Eyelet(s) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
