650281-1
CONN EDGE DUAL FMALE 78POS 0.125Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More

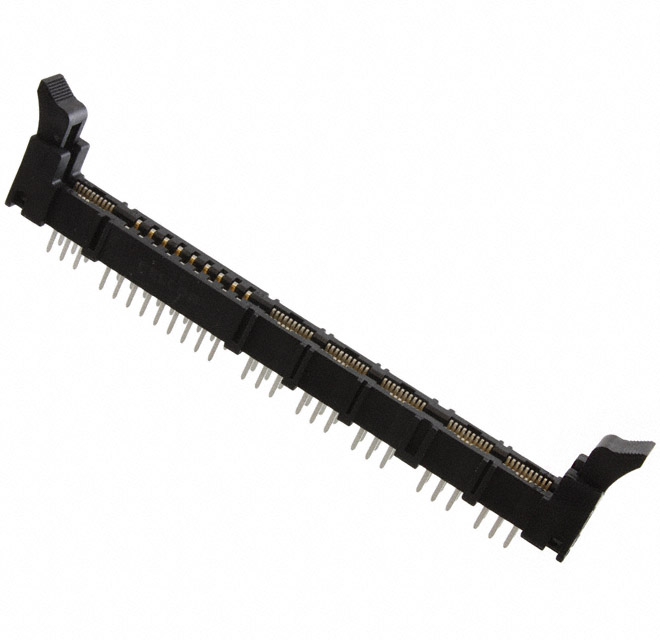

TE Connectivity AMP Connectors Linear series 78-position dual female edgeboard connector, part number 650281-1. This through-hole mounted connector features a 0.125" (3.18mm) pitch and is designed for card thicknesses ranging from 0.054" to 0.072" (1.37mm to 1.82mm). The contacts are made from a copper alloy with a 30.0µin (0.76µm) gold finish. The operating temperature range is -65°C to 85°C. This component finds application in various industries including telecommunications and industrial automation. The connector is supplied in tray packaging.
Additional Information
Series: LinearRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 78 |
| Pitch | 0.125"" (3.18mm) |
| Operating Temperature | -65°C ~ 85°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.054"" ~ 0.072"" (1.37mm ~ 1.82mm) |
| Flange Feature | - |
| Termination | Press-Fit |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | 39 |
| Number of Rows | 2 |
