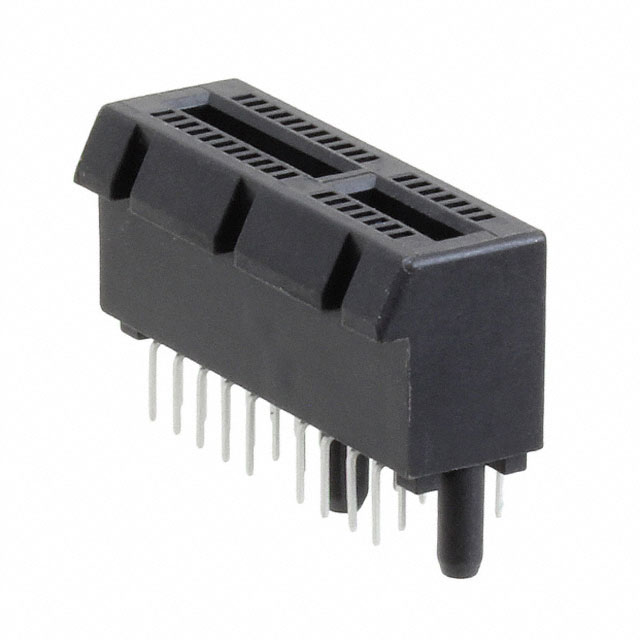

6-1734774-7
CONN PCI EXP FMALE 36POS 0.039Manufacturer: TE Connectivity AMP Connectors
Categories: Edgeboard Connectors
Quality Control: Learn More
36 Position Female Connector PCI Express™ Gold 0.039"" (1.00mm) Black
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Locking Ramp |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | - |
| Read Out | Dual |
| Contact Type | Cantilever |
| Card Type | PCI Express™ |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder, Staggered |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Phosphor Bronze - Tin Plated |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
